recv唤醒时机

问题引出

初始程序

首先从一个简单需求开始：编写C程序测试tcp收发包是否出错

服务端程序：将所有收到数据原封不动转发回去

客户端程序：发送一定数据后介绍返回数据并进行校验，看前后数据是否一致

代码实现如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
// server.c
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <fcntl.h>
#include <unistd.h>
#include <netinet/tcp.h>
#include <netdb.h>
#include <errno.h>

int main(int argc, const char *argv[]) {
  int server_sockfd;               // 服务端套接字
  int client_sockfd;               // 客户端套接字
  struct sockaddr_in my_add;       // 服务器网络地址结构体
  struct sockaddr_in remote_addr;  // 客户端网络地址结构体
  socklen_t sin_size;
  memset(&my_add, 0, sizeof(my_add));   // 数据初始化--清零
  my_add.sin_family = AF_INET;          // 设置为IP通信
  my_add.sin_addr.s_addr = INADDR_ANY;  // 服务器IP地址--允许连接到所有本地地址上
  my_add.sin_port = htons(8000);        // 服务器端口号

  // 创建服务器端套接字--IPV4协议 ，面向连接通信，TCP协议
  if ((server_sockfd = socket(PF_INET, SOCK_STREAM, 0)) < 0) {
    perror("socket");
    return 1;
  }

  // 将套接字绑定到服务器的网络地址上
  if (bind(server_sockfd, (struct sockaddr *)&my_add, sizeof(struct sockaddr)) < 0) {
    perror("bind");
    return 1;
  }

  // 监听连接请求--监听队列长度为5
  listen(server_sockfd, 5);
  sin_size = sizeof(struct sockaddr_in);

  // 等待客户端连接请求到达
  if ((client_sockfd = accept(server_sockfd, (struct sockaddr *)&remote_addr, &sin_size)) < 0) {
    perror("accept");
    return 1;
  }

  printf("accept client %s\n", inet_ntoa(remote_addr.sin_addr));
  char buf[1 << 20];
  int recv_cnt;
  int send_cnt;
  int send_sum = 0;
  int recv_sum = 0;

  // 接受客户端的数据并将其发送给客户端--recv返回接收到的字节数，send返回发送的字节数
  while ((recv_cnt = recv(client_sockfd, buf, 1 << 20, 0)) > 0) {
    send_cnt = send(client_sockfd, buf, recv_cnt, 0);
    if (send_cnt < 0) {
      perror("write");
      break;
    } else {
      send_sum += send_cnt;
      recv_sum += recv_cnt;
      printf("recv cnt:%d send cnt:%d\n", recv_cnt, send_cnt);
    }
  }
  printf("send sum:%d recv sum:%d\n", send_sum, recv_sum);

  close(client_sockfd);
  close(server_sockfd);

  return 0;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
// client.c
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <fcntl.h>
#include <unistd.h>
#include <netinet/tcp.h>
#include <netdb.h>

int main(int argc, const char *argv[]) {
  int client_sockfd;
  struct sockaddr_in remota_addr;                // 服务器端网络地址结构体
  memset(&remota_addr, 0, sizeof(remota_addr));  // 数据初始化--清零
  remota_addr.sin_family = AF_INET;              // 设置为IPV4通信
  remota_addr.sin_addr.s_addr = inet_addr("127.0.0.1");
  remota_addr.sin_port = htons(8000);  // 服务器端口号

  // 创建客户端套接字--Ipv4协议，面向连接通信，TCP协议
  // 成功，返回0 ，失败返回-1
  if ((client_sockfd = socket(PF_INET, SOCK_STREAM, 0)) < 0) {
    perror("socket");
    return 1;
  }

  // 将套接字绑定到服务器的网络地址上
  if (connect(client_sockfd, (struct sockaddr *)&remota_addr, sizeof(struct sockaddr)) < 0) {
    perror("connect");
    return 1;
  }

  printf("connect to server\n");

  char send_buf[1 << 20];
  char recv_buf[1 << 20];
  int test_size = (1 << 19);
  int test_times = 10;
  int send_cnt;
  int recv_cnt;
  int send_sum = 0;
  int recv_sum = 0;

  srand(time(NULL));
  for (int i = 0; i < test_times; i++) {
    memset(send_buf, 0, sizeof(send_buf));
    memset(recv_buf, 0, sizeof(recv_buf));
    for (int j = 0; j < test_size; j++) {
      send_buf[j] = rand() % 255;
    }
    send_cnt = send(client_sockfd, send_buf, test_size, 0);
    if (send_cnt < 0) {
      perror("send failed");
      break;
    } else {
      send_sum += send_cnt;
      printf("send cnt:%d\n", send_cnt);
    }
    recv_cnt = recv(client_sockfd, recv_buf, test_size, 0);
    if (recv_cnt < 0) {
      perror("recv failed");
      break;
    } else {
      recv_sum += recv_cnt;
      printf("recv cnt:%d\n", recv_cnt);
    }

    int cmp_res = memcmp(send_buf, recv_buf, test_size);
    if (cmp_res != 0) {
      printf("[%d] data inconsistency\n", i);
    } else {
      printf("[%d] data consistency\n", i);
    }
  }
  printf("send sum:%d recv sum:%d\n", send_sum, recv_sum);
  close(client_sockfd);
  return 0;
}

1
2
3
4
5
6
7
8
9
all: server client
LIBS = -lpthread
server: server.c
	gcc -g -W -Wall -pthread $(LIBS) -o $@ $<

client: client.c
	gcc -W -Wall -o $@ $<
clean:
	rm server client

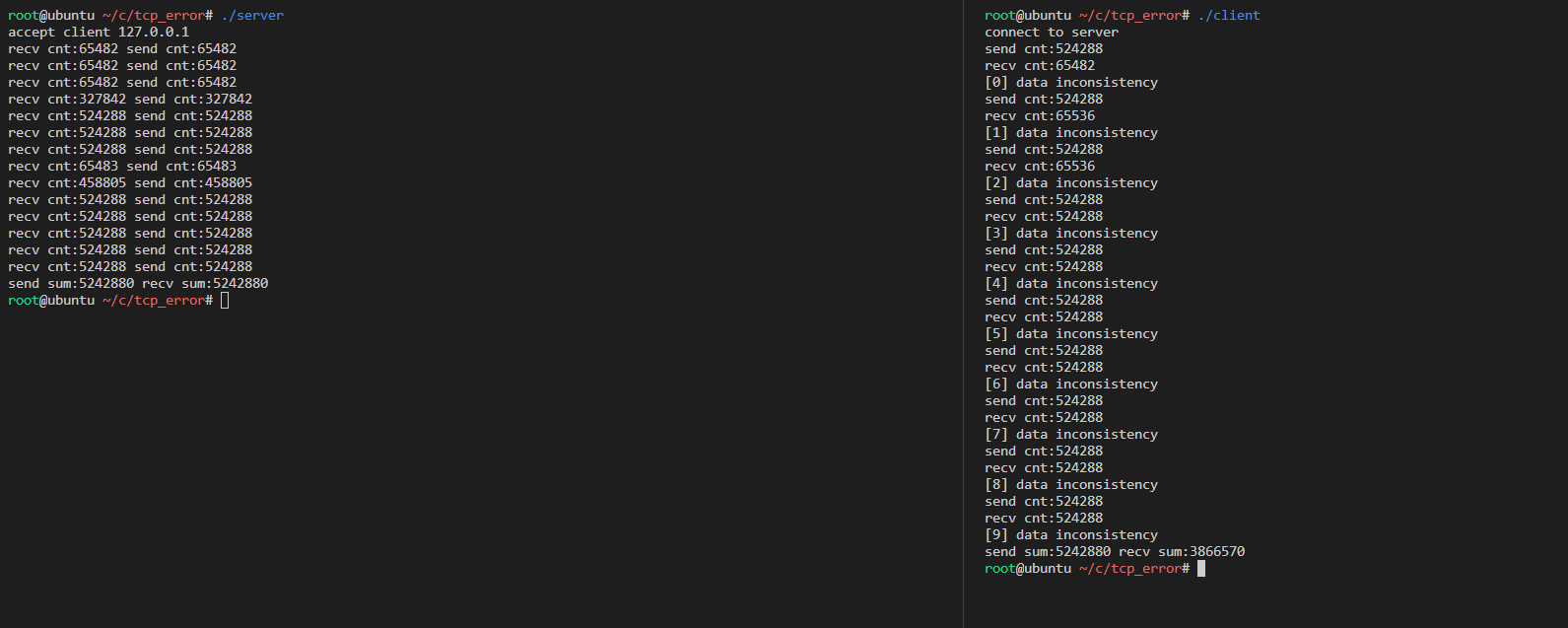

输出截图：

首先观察客户端的输出，send cnt的结果都是512k，recv cnt前几次都是64k相近的数字，而后也变成了512k，发送与接收数据全部不一致，总共发送了5242880字节，但只接收了3866570字节。

然后观察服务端的输出，虽然客户端每次都发送512k，但服务端接收的则不一定为512k，总的发送字节数与接收字节均为5242880字节。

解决总字节数不一致问题

以上代码中存在一些问题，首先解决客户端发送字节总数与接收字节总数不一致的问题，在client代码末尾尝试接收数据。

1
2
3
4
5
6
7
8
// client.c
  printf("send sum:%d recv sum:%d\n", send_sum, recv_sum);
  // 添加以下代码段
  while (recv_sum < send_sum && (recv_cnt = recv(client_sockfd, recv_buf, 1 << 20, 0)) > 0) {
    recv_sum += recv_cnt;
    printf("recv cnt:%d recv sum:%d\n", recv_cnt, recv_sum);
  }
  close(client_sockfd);

输出截图：

可以看出实际上客户端是可以接收全部的5242880字节数据的，只是接收过程中出现了一些“错位”。

解决数据不一致问题

接下来解决数据不一致的问题，想必大家已经意识到出现数据不一致的原因是客户端没有及时接收全部数据，例如服务端发过来512k，客户端第一次只收了64k，而后的448k留待下一次recv系统调用，但下一次客户端预期的数据是下一个512k，由此引起级联的数据不一致问题，这也是为什么之后即使接收了512k数据仍然不一致的原因。解决方法也比较简单：每次接收全部的512k数据。

简单修改client代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
// client.c
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <fcntl.h>
#include <unistd.h>
#include <netinet/tcp.h>
#include <netdb.h>

int main(int argc, const char *argv[]) {
  int client_sockfd;
  struct sockaddr_in remota_addr;                // 服务器端网络地址结构体
  memset(&remota_addr, 0, sizeof(remota_addr));  // 数据初始化--清零
  remota_addr.sin_family = AF_INET;              // 设置为IPV4通信
  remota_addr.sin_addr.s_addr = inet_addr("127.0.0.1");
  remota_addr.sin_port = htons(8000);  // 服务器端口号

  // 创建客户端套接字--Ipv4协议，面向连接通信，TCP协议
  // 成功，返回0 ，失败返回-1
  if ((client_sockfd = socket(PF_INET, SOCK_STREAM, 0)) < 0) {
    perror("socket");
    return 1;
  }

  // 将套接字绑定到服务器的网络地址上
  if (connect(client_sockfd, (struct sockaddr *)&remota_addr, sizeof(struct sockaddr)) < 0) {
    perror("connect");
    return 1;
  }

  printf("connect to server\n");

  char send_buf[1 << 20];
  char recv_buf[1 << 20];
  int test_size = (1 << 19);
  int test_times = 10;
  int send_cnt;
  int recv_cnt;
  int send_sum = 0;
  int recv_sum = 0;

  srand(time(NULL));
  for (int i = 0; i < test_times; i++) {
    memset(send_buf, 0, sizeof(send_buf));
    memset(recv_buf, 0, sizeof(recv_buf));
    for (int j = 0; j < test_size; j++) {
      send_buf[j] = rand() % 255;
    }
    send_cnt = send(client_sockfd, send_buf, test_size, 0);
    if (send_cnt < 0) {
      perror("send failed");
      break;
    } else {
      send_sum += send_cnt;
      printf("send cnt:%d ", send_cnt);
    }
    recv_cnt = recv(client_sockfd, recv_buf, test_size, 0);
    if (recv_cnt < 0) {
      perror("recv failed");
      break;
    } else {
      recv_sum += recv_cnt;
      printf("recv cnt:%d\n", recv_cnt);
    }
    // 接收全部的512K字节
    while (recv_cnt != test_size) {
      int curr_cnt = recv(client_sockfd, recv_buf + recv_cnt, test_size - recv_cnt, 0);
      if (curr_cnt < 0) {
        perror("recv failed");
        break;
      }
      recv_cnt += curr_cnt;
      recv_sum += curr_cnt;
      printf("curr cnt:%d  recv cnt:%d\n", curr_cnt, recv_cnt);
    }
    int cmp_res = memcmp(send_buf, recv_buf, test_size);
    if (cmp_res != 0) {
      printf("[%d] data inconsistency\n", i);
    } else {
      printf("[%d] data consistency\n", i);
    }
  }
  printf("send sum:%d recv sum:%d\n", send_sum, recv_sum);
  while (recv_sum < send_sum && (recv_cnt = recv(client_sockfd, recv_buf, 1 << 20, 0)) > 0) {
    recv_sum += recv_cnt;
    printf("recv cnt:%d recv sum:%d\n", recv_cnt, recv_sum);
  }
  close(client_sockfd);
  return 0;
}

输出截图：

经过以上修改，发送与接收的数据不一致问题解决了，可以看出客户端有时候需要调用多次recv函数才能收完全部的数据，并且客户端recv cnt与服务端send cnt并不是完全对应的

问题分析

初始程序中预设实际上合乎情理，客户端向服务端发送一个TCP报文，即使报文过大，在IP层被拆分，但当所有报文到达对端时，都可以通过报文长度-标识字段-分片偏移字段重组，所以在传输层看来应该隐藏了拆分的细节。但这个预设存在两个问题：①IP报文的最大长度为65535字节（报文头部总长度字段16位）②TCP是面向字节流而不是面向报文的。

相关博客：

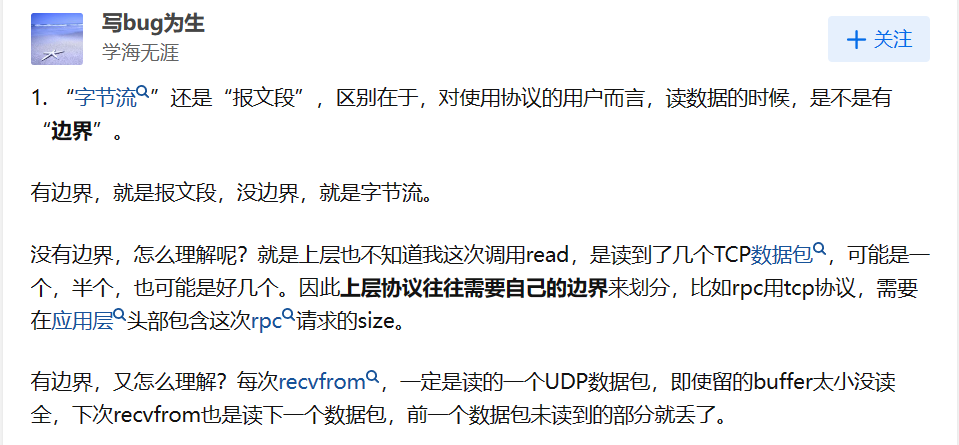

如何理解传输层的TCP面向字节流，UDP面向报文？二者是以是否会分段（mss）来定义？

在以上测试程序中，采用了第一种方法，数据包长度为定长的512k

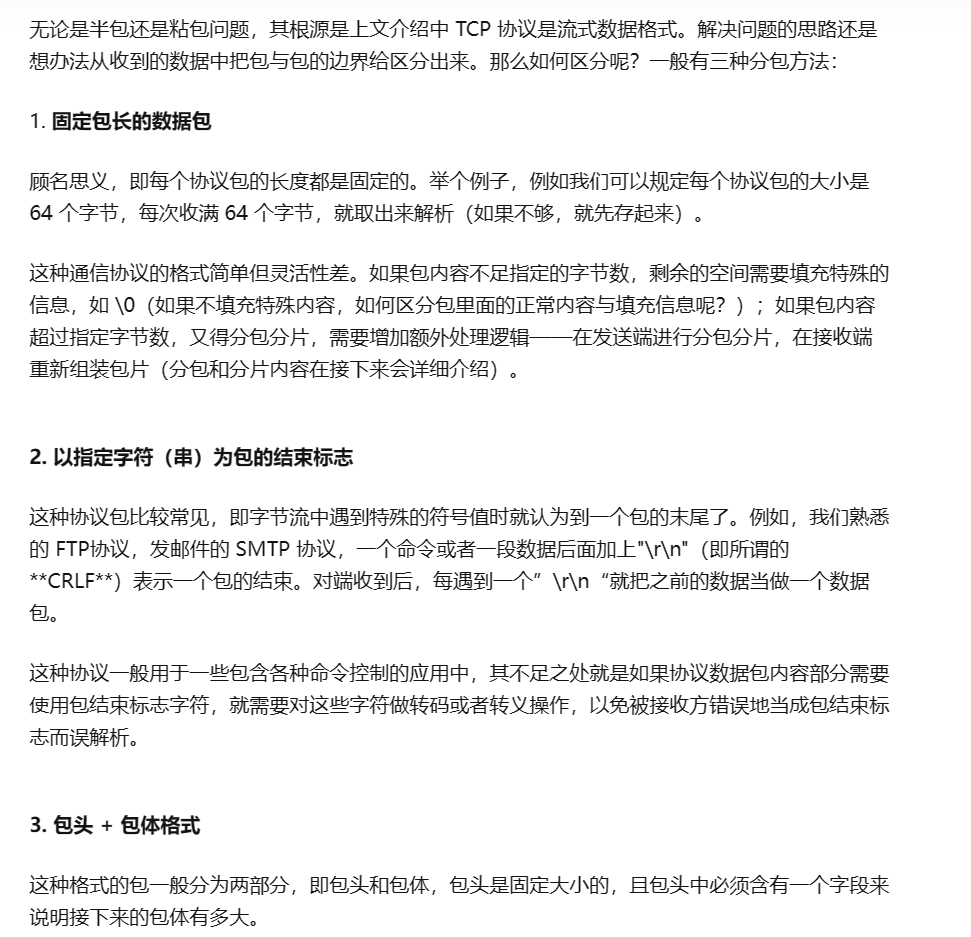

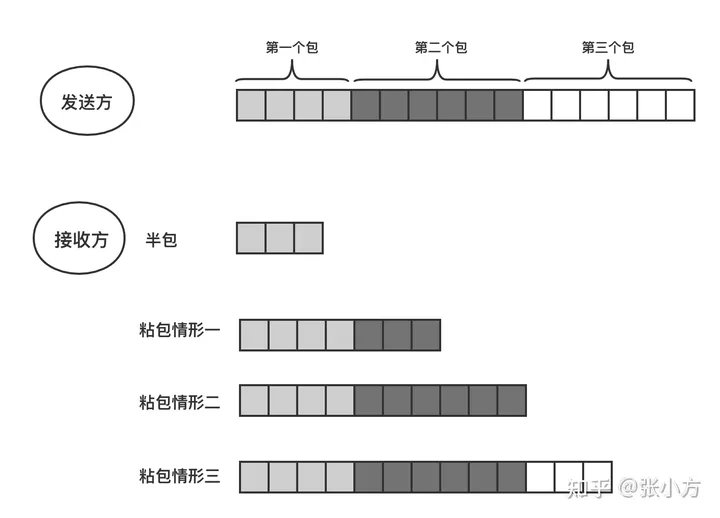

怎么解决TCP网络传输「粘包」问题？

动图图解！既然IP层会分片，为什么TCP层也还要分段？

连 TCP 这几个参数都不懂，回去等通知吧！（三）

问题研究

由以上讨论可以引出许多问题

  1. TCP分段在何时发生，与发送缓冲区大小的关系
  2. TCP分段时报文长度是否需要保留在某个地方，还是直接丢弃，分段完后是否需要类似IP分片的重组操作（我倾向于没有，毕竟是面向字节流而不是面向报文）
  3. 为什么大部分时候client第一次收到的数据长度都是65482，它是由哪些参数决定的
  4. recv系统调用唤醒时机

我对第四个问题更加感兴趣一点，假设client持续收到来自server的数据包，有许多可选的实现方式：

①第一个数据包到来就立即唤醒recv系统调用阻塞线程，效率太低，每次只收mss大小的数据

②持续等待直到填满用户缓冲区，效率也比较低且存在不确定性。client并不知道server要发多少数据过来，recv函数中的n不知道该设置成多少，，假如说recv参数设置为64k，那么即使到达了64k-1的数据也不唤醒，有点不切实际

所以现存实现一定是两者的折中，在到达数据包大小（0，n]时唤醒recv线程，倾向于填满用户缓冲区但不应该是强制填满。

为了找到问题的答案，首先在《Linux内核源代码情景分析》书中找相关代码段的分析

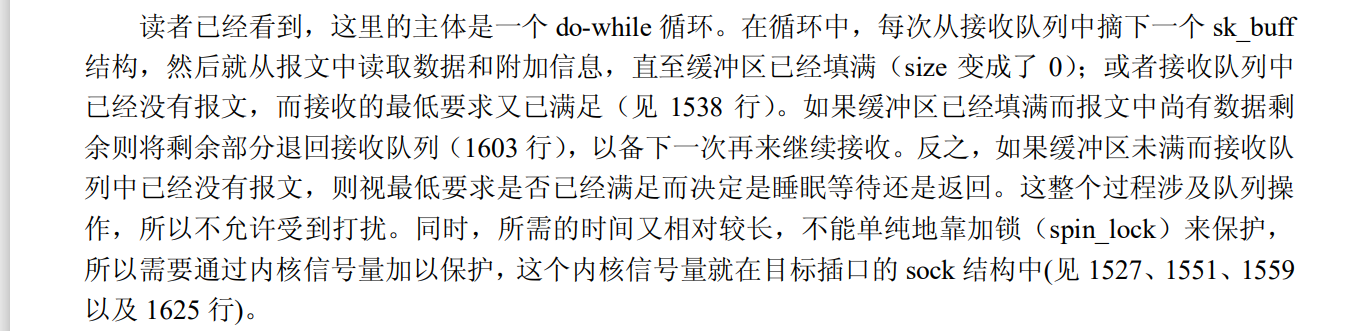

7.7 报文的接收与发送

可以通过设置MSG_WAITALL标志强制填满用户缓冲区

书中分析的代码是unix本地socket通信，不过tcp的处理流程类似，代码地址如下：linux/v5.19.17/source/net/ipv4/tcp.c

完整代码贴在后面，在此复制相关代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
static int tcp_recvmsg_locked(struct sock *sk, struct msghdr *msg, size_t len, int flags, struct scm_timestamping_internal *tss, int *cmsg_flags) {
  struct tcp_sock *tp = tcp_sk(sk);
  int copied = 0;
  u32 peek_seq;
  u32 *seq;
  unsigned long used;
  int err;
  int target; /* Read at least this many bytes */
  long timeo;
  struct sk_buff *skb, *last;
  u32 urg_hole = 0;

  err = -ENOTCONN;
  target = sock_rcvlowat(sk, flags & MSG_WAITALL, len); 	// 书中的target

  do {
    u32 offset;

    /* Next get a buffer. */

    last = skb_peek_tail(&sk->sk_receive_queue);
    skb_queue_walk(&sk->sk_receive_queue, skb) {
      last = skb;
      offset = *seq - TCP_SKB_CB(skb)->seq;
      if (offset < skb->len) goto found_ok_skb;
      if (TCP_SKB_CB(skb)->tcp_flags & TCPHDR_FIN) goto found_fin_ok;
    }

    /* Well, if we have backlog, try to process it now yet. */

    if (copied >= target && !READ_ONCE(sk->sk_backlog.tail)) break;

    if (copied >= target) {
      /* Do not sleep, just process backlog. */
      __sk_flush_backlog(sk);
    } else {  // 未达到target，睡眠
      /* Clean up the receive buffer for full frames taken by the user,
       * then send an ACK if necessary.  COPIED is the number of bytes
       * tcp_recvmsg has given to the user so far, it speeds up the
       * calculation of whether or not we must ACK for the sake of
       * a window update.
       */
      tcp_cleanup_rbuf(sk, copied);
      /**
       * sk_wait_data - wait for data to arrive at sk_receive_queue
       * @sk:    sock to wait on
       * @timeo: for how long
       * @skb:   last skb seen on sk_receive_queue
       *
       * Now socket state including sk->sk_err is changed only under lock,
       * hence we may omit checks after joining wait queue.
       * We check receive queue before schedule() only as optimization;
       * it is very likely that release_sock() added new data.
       */
      sk_wait_data(sk, &timeo, last);
    }
    continue;

  found_ok_skb:
    /* Ok so how much can we use? */
    used = skb->len - offset;
    if (len < used) used = len;

    if (!(flags & MSG_TRUNC)) {
      err = skb_copy_datagram_msg(skb, offset, msg, used);
    }

    WRITE_ONCE(*seq, *seq + used);
    copied += used;
    len -= used;

    tcp_rcv_space_adjust(sk);

  skip_copy:
    if (used + offset < skb->len) continue;

    if (TCP_SKB_CB(skb)->tcp_flags & TCPHDR_FIN) goto found_fin_ok;
    if (!(flags & MSG_PEEK)) tcp_eat_recv_skb(sk, skb);
    continue;

  found_fin_ok:
    /* Process the FIN. */
    WRITE_ONCE(*seq, *seq + 1);
    if (!(flags & MSG_PEEK)) tcp_eat_recv_skb(sk, skb);
    break;
  } while (len > 0);

  /* According to UNIX98, msg_name/msg_namelen are ignored
   * on connected socket. I was just happy when found this 8) --ANK
   */

  /* Clean up data we have read: This will do ACK frames. */
  tcp_cleanup_rbuf(sk, copied);
  return copied;

out:
  return err;

recv_urg:
  err = tcp_recv_urg(sk, msg, len, flags);
  goto out;

recv_sndq:
  err = tcp_peek_sndq(sk, msg, len);
  goto out;
}

sk->sk_rcvlowat参数设置

杂谈：一个有意思的TCP选项SO_RCVLOWAT

基本原理已经弄明白了，懒得继续看了。。。

完整代码

tcp_recvmsg

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

int tcp_recvmsg(struct sock *sk, struct msghdr *msg, size_t len, int flags,
		int *addr_len)
{
	int cmsg_flags = 0, ret;
	struct scm_timestamping_internal tss;

	if (unlikely(flags & MSG_ERRQUEUE))
		return inet_recv_error(sk, msg, len, addr_len);

	if (sk_can_busy_loop(sk) &&
	    skb_queue_empty_lockless(&sk->sk_receive_queue) &&
	    sk->sk_state == TCP_ESTABLISHED)
		sk_busy_loop(sk, flags & MSG_DONTWAIT);

	lock_sock(sk);
	ret = tcp_recvmsg_locked(sk, msg, len, flags, &tss, &cmsg_flags);
	release_sock(sk);

	if ((cmsg_flags || msg->msg_get_inq) && ret >= 0) {
		if (cmsg_flags & TCP_CMSG_TS)
			tcp_recv_timestamp(msg, sk, &tss);
		if (msg->msg_get_inq) {
			msg->msg_inq = tcp_inq_hint(sk);
			if (cmsg_flags & TCP_CMSG_INQ)
				put_cmsg(msg, SOL_TCP, TCP_CM_INQ,
					 sizeof(msg->msg_inq), &msg->msg_inq);
		}
	}
	return ret;
}
EXPORT_SYMBOL(tcp_recvmsg);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
/*
 *	This routine copies from a sock struct into the user buffer.
 *
 *	Technical note: in 2.3 we work on _locked_ socket, so that
 *	tricks with *seq access order and skb->users are not required.
 *	Probably, code can be easily improved even more.
 */

static int tcp_recvmsg_locked(struct sock *sk, struct msghdr *msg, size_t len,
			      int flags, struct scm_timestamping_internal *tss,
			      int *cmsg_flags)
{
	struct tcp_sock *tp = tcp_sk(sk);
	int copied = 0;
	u32 peek_seq;
	u32 *seq;
	unsigned long used;
	int err;
	int target;		/* Read at least this many bytes */
	long timeo;
	struct sk_buff *skb, *last;
	u32 urg_hole = 0;

	err = -ENOTCONN;
	if (sk->sk_state == TCP_LISTEN)
		goto out;

	if (tp->recvmsg_inq) {
		*cmsg_flags = TCP_CMSG_INQ;
		msg->msg_get_inq = 1;
	}
	timeo = sock_rcvtimeo(sk, flags & MSG_DONTWAIT);

	/* Urgent data needs to be handled specially. */
	if (flags & MSG_OOB)
		goto recv_urg;

	if (unlikely(tp->repair)) {
		err = -EPERM;
		if (!(flags & MSG_PEEK))
			goto out;

		if (tp->repair_queue == TCP_SEND_QUEUE)
			goto recv_sndq;

		err = -EINVAL;
		if (tp->repair_queue == TCP_NO_QUEUE)
			goto out;

		/* 'common' recv queue MSG_PEEK-ing */
	}

	seq = &tp->copied_seq;
	if (flags & MSG_PEEK) {
		peek_seq = tp->copied_seq;
		seq = &peek_seq;
	}

	target = sock_rcvlowat(sk, flags & MSG_WAITALL, len);

	do {
		u32 offset;

		/* Are we at urgent data? Stop if we have read anything or have SIGURG pending. */
		if (unlikely(tp->urg_data) && tp->urg_seq == *seq) {
			if (copied)
				break;
			if (signal_pending(current)) {
				copied = timeo ? sock_intr_errno(timeo) : -EAGAIN;
				break;
			}
		}

		/* Next get a buffer. */

		last = skb_peek_tail(&sk->sk_receive_queue);
		skb_queue_walk(&sk->sk_receive_queue, skb) {
			last = skb;
			/* Now that we have two receive queues this
			 * shouldn't happen.
			 */
			if (WARN(before(*seq, TCP_SKB_CB(skb)->seq),
				 "TCP recvmsg seq # bug: copied %X, seq %X, rcvnxt %X, fl %X\n",
				 *seq, TCP_SKB_CB(skb)->seq, tp->rcv_nxt,
				 flags))
				break;

			offset = *seq - TCP_SKB_CB(skb)->seq;
			if (unlikely(TCP_SKB_CB(skb)->tcp_flags & TCPHDR_SYN)) {
				pr_err_once("%s: found a SYN, please report !\n", __func__);
				offset--;
			}
			if (offset < skb->len)
				goto found_ok_skb;
			if (TCP_SKB_CB(skb)->tcp_flags & TCPHDR_FIN)
				goto found_fin_ok;
			WARN(!(flags & MSG_PEEK),
			     "TCP recvmsg seq # bug 2: copied %X, seq %X, rcvnxt %X, fl %X\n",
			     *seq, TCP_SKB_CB(skb)->seq, tp->rcv_nxt, flags);
		}

		/* Well, if we have backlog, try to process it now yet. */

		if (copied >= target && !READ_ONCE(sk->sk_backlog.tail))
			break;

		if (copied) {
			if (!timeo ||
			    sk->sk_err ||
			    sk->sk_state == TCP_CLOSE ||
			    (sk->sk_shutdown & RCV_SHUTDOWN) ||
			    signal_pending(current))
				break;
		} else {
			if (sock_flag(sk, SOCK_DONE))
				break;

			if (sk->sk_err) {
				copied = sock_error(sk);
				break;
			}

			if (sk->sk_shutdown & RCV_SHUTDOWN)
				break;

			if (sk->sk_state == TCP_CLOSE) {
				/* This occurs when user tries to read
				 * from never connected socket.
				 */
				copied = -ENOTCONN;
				break;
			}

			if (!timeo) {
				copied = -EAGAIN;
				break;
			}

			if (signal_pending(current)) {
				copied = sock_intr_errno(timeo);
				break;
			}
		}

		if (copied >= target) {
			/* Do not sleep, just process backlog. */
			__sk_flush_backlog(sk);
		} else {
			tcp_cleanup_rbuf(sk, copied);
			sk_wait_data(sk, &timeo, last);
		}

		if ((flags & MSG_PEEK) &&
		    (peek_seq - copied - urg_hole != tp->copied_seq)) {
			net_dbg_ratelimited("TCP(%s:%d): Application bug, race in MSG_PEEK\n",
					    current->comm,
					    task_pid_nr(current));
			peek_seq = tp->copied_seq;
		}
		continue;

found_ok_skb:
		/* Ok so how much can we use? */
		used = skb->len - offset;
		if (len < used)
			used = len;

		/* Do we have urgent data here? */
		if (unlikely(tp->urg_data)) {
			u32 urg_offset = tp->urg_seq - *seq;
			if (urg_offset < used) {
				if (!urg_offset) {
					if (!sock_flag(sk, SOCK_URGINLINE)) {
						WRITE_ONCE(*seq, *seq + 1);
						urg_hole++;
						offset++;
						used--;
						if (!used)
							goto skip_copy;
					}
				} else
					used = urg_offset;
			}
		}

		if (!(flags & MSG_TRUNC)) {
			err = skb_copy_datagram_msg(skb, offset, msg, used);
			if (err) {
				/* Exception. Bailout! */
				if (!copied)
					copied = -EFAULT;
				break;
			}
		}

		WRITE_ONCE(*seq, *seq + used);
		copied += used;
		len -= used;

		tcp_rcv_space_adjust(sk);

skip_copy:
		if (unlikely(tp->urg_data) && after(tp->copied_seq, tp->urg_seq)) {
			WRITE_ONCE(tp->urg_data, 0);
			tcp_fast_path_check(sk);
		}

		if (TCP_SKB_CB(skb)->has_rxtstamp) {
			tcp_update_recv_tstamps(skb, tss);
			*cmsg_flags |= TCP_CMSG_TS;
		}

		if (used + offset < skb->len)
			continue;

		if (TCP_SKB_CB(skb)->tcp_flags & TCPHDR_FIN)
			goto found_fin_ok;
		if (!(flags & MSG_PEEK))
			tcp_eat_recv_skb(sk, skb);
		continue;

found_fin_ok:
		/* Process the FIN. */
		WRITE_ONCE(*seq, *seq + 1);
		if (!(flags & MSG_PEEK))
			tcp_eat_recv_skb(sk, skb);
		break;
	} while (len > 0);

	/* According to UNIX98, msg_name/msg_namelen are ignored
	 * on connected socket. I was just happy when found this 8) --ANK
	 */

	/* Clean up data we have read: This will do ACK frames. */
	tcp_cleanup_rbuf(sk, copied);
	return copied;

out:
	return err;

recv_urg:
	err = tcp_recv_urg(sk, msg, len, flags);
	goto out;

recv_sndq:
	err = tcp_peek_sndq(sk, msg, len);
	goto out;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
static inline int sock_rcvlowat(const struct sock *sk, int waitall, int len)
{
	int v = waitall ? len : min_t(int, READ_ONCE(sk->sk_rcvlowat), len);

	return v ?: 1;
}

/* Make sure sk_rcvbuf is big enough to satisfy SO_RCVLOWAT hint */
int tcp_set_rcvlowat(struct sock *sk, int val)
{
	int cap;

	if (sk->sk_userlocks & SOCK_RCVBUF_LOCK)
		cap = sk->sk_rcvbuf >> 1;
	else
		cap = READ_ONCE(sock_net(sk)->ipv4.sysctl_tcp_rmem[2]) >> 1;
	val = min(val, cap);
	WRITE_ONCE(sk->sk_rcvlowat, val ? : 1);

	/* Check if we need to signal EPOLLIN right now */
	tcp_data_ready(sk);

	if (sk->sk_userlocks & SOCK_RCVBUF_LOCK)
		return 0;

	val <<= 1;
	if (val > sk->sk_rcvbuf) {
		WRITE_ONCE(sk->sk_rcvbuf, val);
		tcp_sk(sk)->window_clamp = tcp_win_from_space(sk, val);
	}
	return 0;
}
EXPORT_SYMBOL(tcp_set_rcvlowat);

FLAGS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
/* Bits in the FLAGS argument to `send', `recv', et al.  */
enum
  {
    MSG_OOB		= 0x01,	/* Process out-of-band data.  */
#define MSG_OOB		MSG_OOB
    MSG_PEEK		= 0x02,	/* Peek at incoming messages.  */
#define MSG_PEEK	MSG_PEEK
    MSG_DONTROUTE	= 0x04,	/* Don't use local routing.  */
#define MSG_DONTROUTE	MSG_DONTROUTE
#ifdef __USE_GNU
    /* DECnet uses a different name.  */
    MSG_TRYHARD		= MSG_DONTROUTE,
# define MSG_TRYHARD	MSG_DONTROUTE
#endif
    MSG_CTRUNC		= 0x08,	/* Control data lost before delivery.  */
#define MSG_CTRUNC	MSG_CTRUNC
    MSG_PROXY		= 0x10,	/* Supply or ask second address.  */
#define MSG_PROXY	MSG_PROXY
    MSG_TRUNC		= 0x20,
#define MSG_TRUNC	MSG_TRUNC
    MSG_DONTWAIT	= 0x40, /* Nonblocking IO.  */
#define MSG_DONTWAIT	MSG_DONTWAIT
    MSG_EOR		= 0x80, /* End of record.  */
#define MSG_EOR		MSG_EOR
    MSG_WAITALL		= 0x100, /* Wait for a full request.  */
#define MSG_WAITALL	MSG_WAITALL
    MSG_FIN		= 0x200,
#define MSG_FIN		MSG_FIN
    MSG_SYN		= 0x400,
#define MSG_SYN		MSG_SYN
    MSG_CONFIRM		= 0x800, /* Confirm path validity.  */
#define MSG_CONFIRM	MSG_CONFIRM
    MSG_RST		= 0x1000,
#define MSG_RST		MSG_RST
    MSG_ERRQUEUE	= 0x2000, /* Fetch message from error queue.  */
#define MSG_ERRQUEUE	MSG_ERRQUEUE
    MSG_NOSIGNAL	= 0x4000, /* Do not generate SIGPIPE.  */
#define MSG_NOSIGNAL	MSG_NOSIGNAL
    MSG_MORE		= 0x8000,  /* Sender will send more.  */
#define MSG_MORE	MSG_MORE
    MSG_WAITFORONE	= 0x10000, /* Wait for at least one packet to return.*/
#define MSG_WAITFORONE	MSG_WAITFORONE
    MSG_BATCH		= 0x40000, /* sendmmsg: more messages coming.  */
#define MSG_BATCH	MSG_BATCH
    MSG_ZEROCOPY	= 0x4000000, /* Use user data in kernel path.  */
#define MSG_ZEROCOPY	MSG_ZEROCOPY
    MSG_FASTOPEN	= 0x20000000, /* Send data in TCP SYN.  */
#define MSG_FASTOPEN	MSG_FASTOPEN

    MSG_CMSG_CLOEXEC	= 0x40000000	/* Set close_on_exit for file
					   descriptor received through
					   SCM_RIGHTS.  */
#define MSG_CMSG_CLOEXEC MSG_CMSG_CLOEXEC
  };

UDP demo

简单udp收发demo，粘贴在此，便于以后复制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
#include <stdio.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdlib.h>
#include <string.h>
#include <vector>
#include <thread>

using namespace std;
int main(int argc, char *argv[]) {
  int server_sock_fd;
  struct sockaddr_in server_addr, client_addr;
  char recv_buf[(1 << 16)];
  int nbytes = 0;
  socklen_t len = 0;

  /* 创建Server Socket */
  server_sock_fd = socket(AF_INET, SOCK_DGRAM, 0);
  if (server_sock_fd < 0) {
    printf("服务端Socket创建失败");
    return -1;
  }
  printf("服务端Socket创建成功\n");

  /* 绑定ip和端口 */
  bzero(&server_addr, sizeof(server_addr));
  server_addr.sin_family = AF_INET;
  server_addr.sin_addr.s_addr = htonl(INADDR_ANY);
  server_addr.sin_port = htons(8081);  // 指定端口号
  bind(server_sock_fd, (struct sockaddr *)&server_addr, sizeof(server_addr));

  printf("服务端Socket绑定成功\n");

  auto recv_func = [&](int id) {
    int index = 0;
    while (1) {
      /* 接收UDP客户端的数据 */
      len = sizeof(client_addr);
      nbytes = recvfrom(server_sock_fd, recv_buf, 1 << 16, 0, (struct sockaddr *)&client_addr, &len);
      index++;
      printf("thread-%d %dth recv %s:%d %d bytes:%s.\n", id, index, inet_ntoa(client_addr.sin_addr), ntohs(client_addr.sin_port), nbytes, recv_buf);
    }
  };
  vector<thread> threads;
  for (int i = 0; i < 5; i++) {
    threads.emplace_back(recv_func, i);
  }
  for (int i = 0; i < 5; i++) {
    threads[i].join();
  }
  return 0;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
#include <stdio.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdlib.h>
#include <string.h>
#include <vector>
#include <thread>

using namespace std;

int main(int argc, char *argv[]) {
  struct sockaddr_in server_addr;

  int nbytes = 0;
  socklen_t len = 0;

  /* 绑定ip和端口 */
  bzero(&server_addr, sizeof(server_addr));
  server_addr.sin_family = AF_INET;
  server_addr.sin_addr.s_addr = inet_addr("127.0.0.1");
  server_addr.sin_port = htons(8081);  // 指定端口号
  len = sizeof(server_addr);
  auto send_func = [&](int id) {
    char recv_buf[(1 << 16)];
    int test_size = 1 << 10;
    int sock_fd;
    /* 创建Socket */
    sock_fd = socket(AF_INET, SOCK_DGRAM, 0);
    if (sock_fd < 0) {
      printf("客户端Socket创建失败");
      return -1;
    }
    for (int i = 0; i < 10; i++) {
      nbytes = sendto(sock_fd, recv_buf, test_size, 0, (struct sockaddr *)(&server_addr), len);
      printf("thread-%d %dth send %d bytes:%s.\n", id, i, nbytes, recv_buf);
    }
  };

  vector<thread> threads;
  for (int i = 0; i < 10; i++) {
    threads.emplace_back(send_func, i);
  }
  for (int i = 0; i < 10; i++) {
    threads[i].join();
  }
  return 0;

  return 0;
}

1
2
3
4
5
6
7
8
9
all: server client
LIBS = -lpthread
server: server.cpp
	g++ -g -W -Wall -pthread $(LIBS) -o $@ $<

client: client.cpp
	g++ -g -W -Wall -pthread $(LIBS) -o $@ $<
clean:
	rm server client
