leveldb第一幕 资源推荐

博客推荐

书籍
那岩. Leveldb实现解析.pdf
相关博客
leveldb实现原理
一文带你看透基于LSM-tree的NoSQL系统优化方向（到2020年为止 最全、最新）
浅析 Bigtable 和 LevelDB 的实现
LevelDB之Compaction实现
庖丁解LevelDB之概览
Leveldb二三事
leveldb为什么要设计为多层结构呢？
LevelDB 之 Compaction
系列博客
leveldb中的LRUCache设计

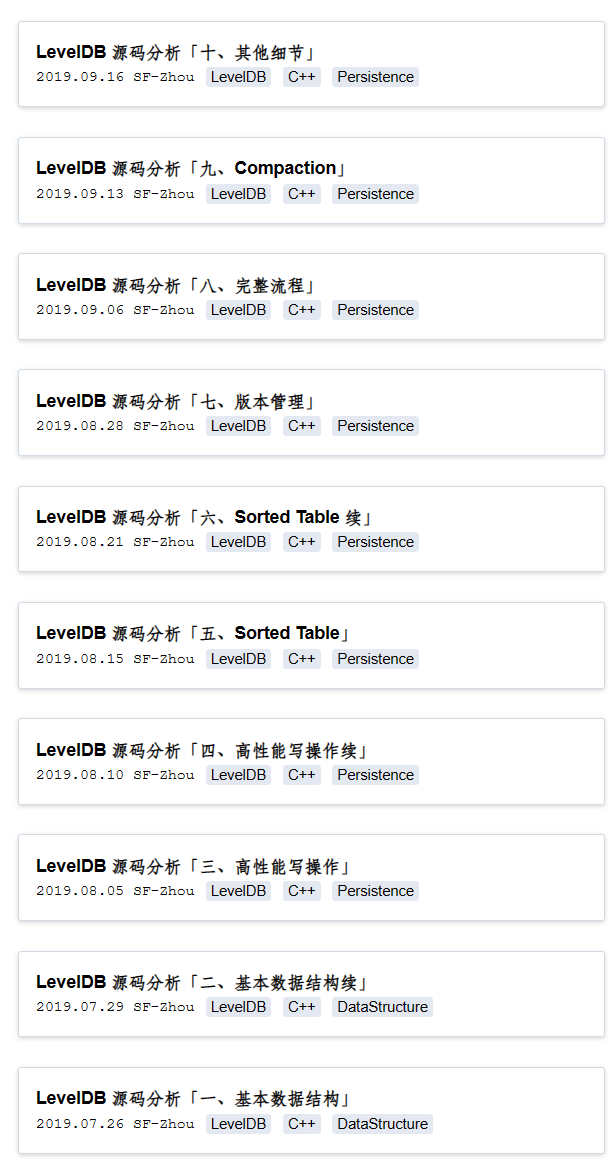

LevelDB 源码分析

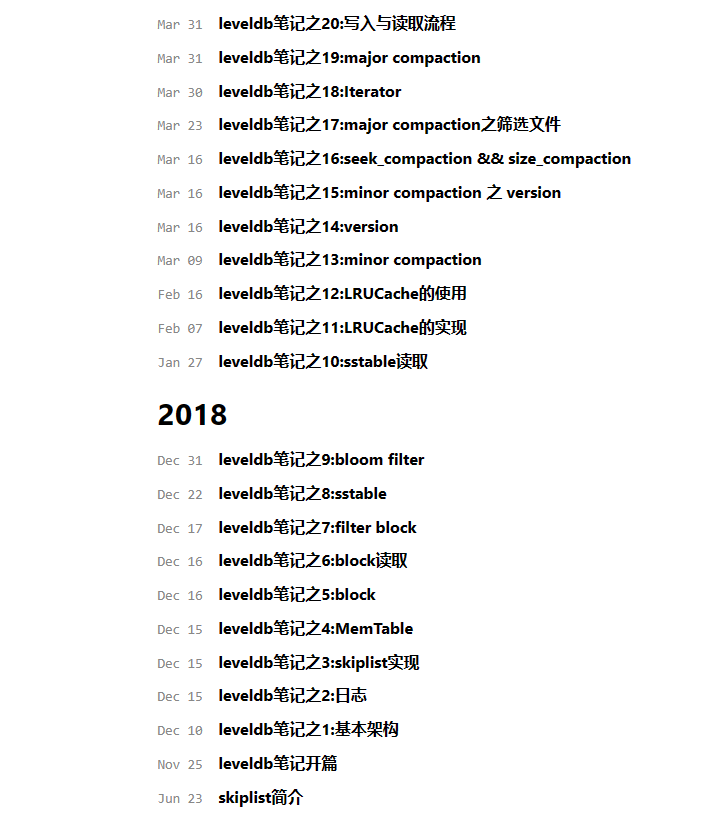

leveldb笔记

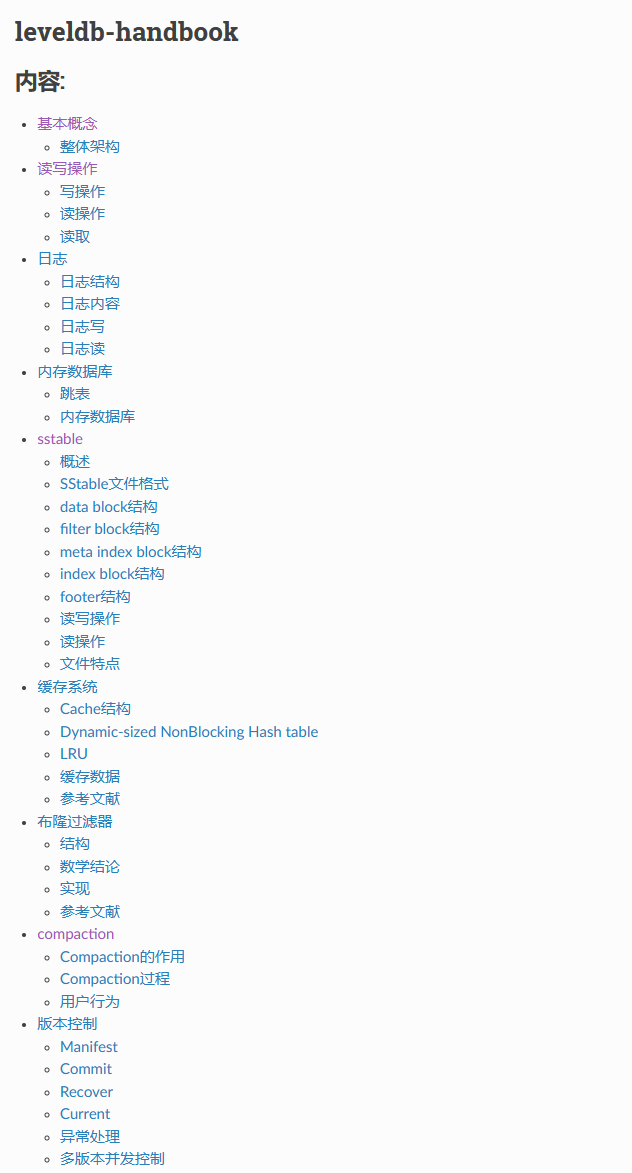

leveldb-handbook 有挺多图，不过是go的

相关论文
《Skip Lists: A Probabilistic Alternative to Balanced Trees》
《Bigtable: A Distributed Storage System for Structured Data》

阅读顺序

1 实现一个跳表

github Skiplist-CPP
LeetCode 1206. 设计跳表

简单了解跳表原理后阅读一些实现代码，最后参考LeetCode官方题解，简单实现一个跳表，加深印象。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
const int kMaxLevel = 30;
const int kProb = 25;
struct SkiplistNode {
  SkiplistNode(int key, int level) {
    key_ = key;
    forward_ = vector<SkiplistNode*>(level, nullptr);
  }
  vector<SkiplistNode*> forward_;
  int key_;
};
class Skiplist {
 public:
  Skiplist() {
    head_ = new SkiplistNode(-1, kMaxLevel);
    cur_level_ = 0;
  }

  bool search(int target) {
    SkiplistNode* cur = head_;
    for (int i = cur_level_ - 1; i >= 0; i--) {
      // 找到小于且最接近目标
      while (cur->forward_[i] != nullptr && cur->forward_[i]->key_ < target) {
        cur = cur->forward_[i];
      }
    }
    // 该节点的下一个节点，若不为空且相等则找到目标
    cur = cur->forward_[0];
    return cur != nullptr && cur->key_ == target;
  }

  void add(int num) {
    vector<SkiplistNode*> update(kMaxLevel, head_);  // 待更新指针
    SkiplistNode* cur = head_;
    for (int i = cur_level_ - 1; i >= 0; i--) {
      while (cur->forward_[i] != nullptr && cur->forward_[i]->key_ < num) {
        cur = cur->forward_[i];
      }
      update[i] = cur;  // 记录该层前缀节点指针
    }
    int node_level = get_random_level();
    cur_level_ = max(cur_level_, node_level);
    SkiplistNode* new_node = new SkiplistNode(num, node_level);
    for (int i = 0; i < node_level; i++) {  // 从0-node_level修改前缀节点
      new_node->forward_[i] = update[i]->forward_[i];
      update[i]->forward_[i] = new_node;
    }
  }

  bool erase(int num) {
    vector<SkiplistNode*> update(cur_level_, head_);
    SkiplistNode* cur = head_;
    for (int i = cur_level_ - 1; i >= 0; i--) {
      while (cur->forward_[i] != nullptr && cur->forward_[i]->key_ < num) {
        cur = cur->forward_[i];
      }
      update[i] = cur;
    }
    cur = cur->forward_[0];
    if (cur == nullptr || cur->key_ != num) {  // 目标不存在
      return false;
    }
    for (int i = 0; i < cur_level_; i++) {
      if (update[i]->forward_[i] != cur) {  // 到达节点层数
        break;
      }
      update[i]->forward_[i] = cur->forward_[i];
    }
    delete cur;
    /* 更新当前的 level */
    while (cur_level_ > 1 && head_->forward_[cur_level_ - 1] == nullptr) {
      cur_level_--;
    }
    return true;
  }

  int get_random_level() {
    int level = 1;
    while (level < kMaxLevel && rand() % 100 < kProb) {
      level++;
    }
    return level;
  }

  void display_list() {
    cout << "*****Skip List*****" << endl;
    for (int i = 0; i < cur_level_; i++) {
      SkiplistNode* cur = head_->forward_[i];
      cout << "Level " << i << ": ";
      while (cur != nullptr) {
        cout << cur->key_ << "->";
        cur = cur->forward_[i];
      }
      cout << endl;
    }
  }

 private:
  SkiplistNode* head_;
  int cur_level_;
};

2 阅读leveldb各个模块的代码

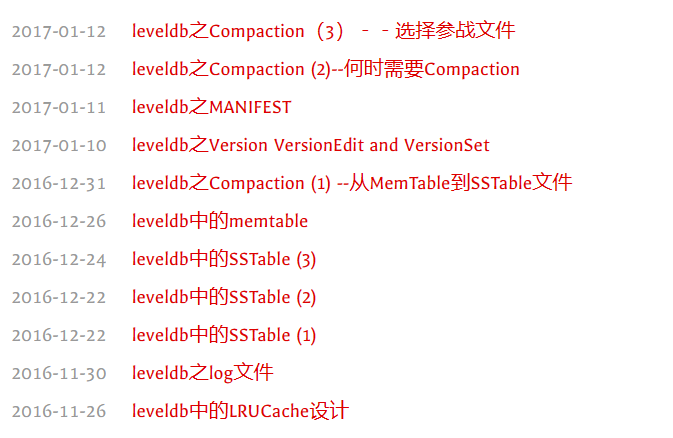

对照一个leveldb系列博客，大致过一遍各个模块的主要代码

leveldb中的LRUCache设计

1
2
include/leveldb/cache.h
util/cache.cc

leveldb之log文件

1
2
3
4
db/log_format.h
db/log_writer.h
db/log_writer.cc
// log_reader不需要看

leveldb中的SSTable (1) data-block
leveldb中的SSTable (2) index-block
leveldb中的SSTable (3) bloom-filter

1
2
3
4
5
6
7
8
9
10
11
12
table/format.h
table/format.cc
table/block.h
table/block.cc
table/block_builder.h
table/block_builder.cc
include/leveldb/filter_policy.h
util/bloom.cc
table/filter_block.h
table/filter_block.cc
include/leveldb/table_builder.h
table/table_builder.cc

leveldb中的memtable

1
2
3
4
5
6
7
util/arena.h
util/arena.cc
db/skiplist.h
db/dbformat.h
db/dbformat.cc
db/memtable.h
db/memtable.cc

leveldb之Compaction (1) –从MemTable到SSTable文件
leveldb之Version VersionEdit and VersionSet
leveldb之MANIFEST
leveldb之Compaction (2)–何时需要Compaction
leveldb之Compaction（3）－－选择参战文件

1
2
3
4
5
6
db/db_impl.h
db/db_impl.cc
db/version_edit.h
db/version_edit.cc
db/version_set.h
db/version_set.cc

而后看其他的leveldb系列博客，以其他角度再看一遍代码，这样就能大致了解leveldb的代码框架

什么是uintptr_t数据类型？
详解varint编码原理
C++ 工程实践(2)：不要重载全局 ::operator new()
Memory Order浅析（以LevelDB中的跳表为例
编译防火墙——C++的Pimpl惯用法解析
C++工厂模式（简单工厂、工厂方法、抽象工厂）
工厂模式和抽象工厂的区别是什么？
C++设计模式——策略模式
leveldb源码剖析—迭代器设计

3 运行简单demo

第一步git clone就遇到问题，一直clone失败

  1. 关闭电脑代理，重置git代理
    1
    2
    git config --global --unset http.proxy
    git config --global --unset https.proxy
  2. 修改hosts文件，添加github与ip地址映射 https://github.com/521xueweihan/GitHub520
  3. 重启网络或主机
  4. 彻底解决git clone以及 recursive慢的问题
    将git clone –recurse-submodules命令拆分成git clone和git submodule update --init --recursive

不过最后还是重启比较有效，git主打一个运气

编译生成静态库和可执行文件

1
2
mkdir -p build && cd build
cmake -DCMAKE_BUILD_TYPE=Release .. && cmake --build .

将静态库和头文件拷贝至系统目录

1
2
cp build/libleveldb.a /usr/local/lib/
cp -r include/leveldb/ /usr/local/include/

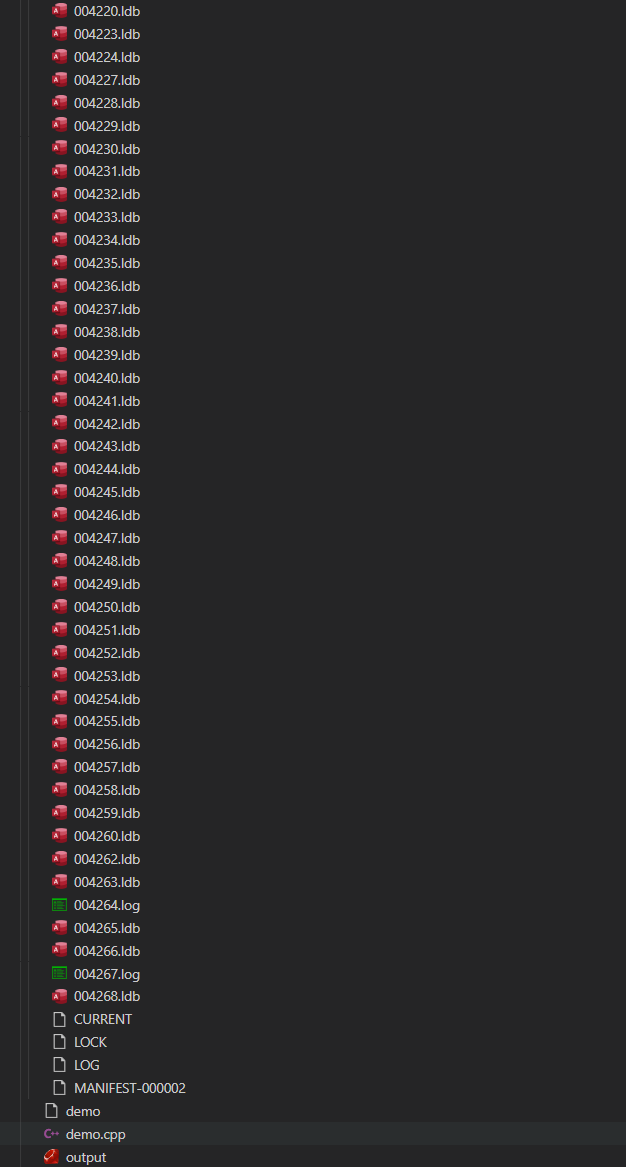

编写简单代码，查看生成文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
#include <cassert>
#include <iostream>
#include <string>
#include <chrono>
#include <leveldb/db.h>

std::string RandStr(int len) /*参数为字符串的长度*/
{
  std::string str;
  char c;
  int idx;
  /*循环向字符串中添加随机生成的字符*/
  for (idx = 0; idx < len; idx++) {
    c = 'a' + rand() % 26;
    str.push_back(c);
  }
  return str;
}
void PrintStats(leveldb::DB* db, std::string key) {
  std::string stats;
  if (!db->GetProperty(key, &stats)) {
    stats = "(failed)";
  }
  std::cout << key << std::endl << stats << std::endl;
}
int main() {
  leveldb::DB* db;
  leveldb::Options options;
  options.create_if_missing = true;  // 不存在时创建数据库
  leveldb::Status status = leveldb::DB::Open(options, "./testdb", &db);
  assert(status.ok());
  int total_size = 1 << 30;              // 写入1G数据
  int times = total_size / (16 + 1024);  // key 16 vlaue 1024
  std::string key;
  std::string value(1024, 'a');
  auto start = std::chrono::system_clock::now();
  for (int i = 0; i < times; i++) {
    key = RandStr(16);
    leveldb::Status s = db->Put(leveldb::WriteOptions(), key, value);
    assert(status.ok());
  }
  auto end = std::chrono::system_clock::now();
  printf("用时:%ldms\n", std::chrono::duration_cast<std::chrono::milliseconds>(end - start).count());
  PrintStats(db, "leveldb.num-files-at-level0");
  PrintStats(db, "leveldb.num-files-at-level1");
  PrintStats(db, "leveldb.num-files-at-level2");
  PrintStats(db, "leveldb.num-files-at-level3");
  PrintStats(db, "leveldb.num-files-at-level4");
  PrintStats(db, "leveldb.num-files-at-level5");
  PrintStats(db, "leveldb.num-files-at-level6");
  PrintStats(db, "leveldb.stats");
  PrintStats(db, "leveldb.approximate-memory-usage");
  PrintStats(db, "leveldb.sstables");
  delete db;
  return 0;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
g++ -o demo demo.cpp -pthread -lleveldb
./demo

用时:40s
leveldb.num-files-at-level0
2
leveldb.num-files-at-level1
30
leveldb.num-files-at-level2
116
leveldb.num-files-at-level3
390
leveldb.num-files-at-level4
0
leveldb.num-files-at-level5
0
leveldb.num-files-at-level6
0
leveldb.stats
                               Compactions
Level  Files Size(MB) Time(sec) Read(MB) Write(MB)
--------------------------------------------------
  0        2        8         5        0      1032
  1       30       50         8     1614      1617
  2      116      199        19     3885      3888
  3      390      781         5     1177      1177

leveldb.approximate-memory-usage
5342031
leveldb.sstables
--- level 0 ---
 4265:4128694['aaafdmocvosxkzze' @ 1025108 : 1 .. 'zzxgkzexldoiizif' @ 1024461 : 1]
 4262:4128673['aadcxohcjlpnxhsm' @ 1020133 : 1 .. 'zzvucctuyeuwfbil' @ 1023520 : 1]
--- level 1 ---
 4231:1862625['aaajezvmsitnnejz' @ 1001937 : 1 .. 'blbakcmfgrtwyehv' @ 993423 : 1]
 4232:1784123['blcjhooocioixoit' @ 991308 : 1 .. 'cwlrttrlmjxefwup' @ 996329 : 1]
 4233:2113022['cwogxfqhvzevrrrc' @ 1012061 : 1 .. 'eocfiqlpwfbccmxg' @ 1018021 : 1]
 4234:210059['eodffvofatfsarkw' @ 991815 : 1 .. 'erwdzkmquwismiiy' @ 1008734 : 1]
 4235:2113056['erwopxgomtjszntr' @ 1000592 : 1 .. 'giewlotxatqzjovf' @ 1000600 : 1]
...
--- level 2 ---
 4083:2116195['aaacbsiejgeezqcb' @ 811752 : 1 .. 'adpimzodsychkglw' @ 807737 : 1]
 4084:2112026['adpkdfqbzpkxhjbk' @ 701446 : 1 .. 'ahiwydsxabdveorg' @ 847054 : 1]
 4085:2111979['ahixgxhavdrfhjqe' @ 814576 : 1 .. 'albnszihiruchzxc' @ 916447 : 1]
 4087:2116348['albpqapkmwsdklrw' @ 653044 : 1 .. 'aozdjvizjuffkjeo' @ 880899 : 1]
 4088:2112328['aozelvnoqwfrtuza' @ 753385 : 1 .. 'asrkxqalejefizpz' @ 805938 : 1]
 4089:2112075['asrlmyhsqldruhwa' @ 657241 : 1 .. 'awjoalxbekuyajeb' @ 983336 : 1]
 4090:2116197['awjobiuxkcadgoqj' @ 702399 : 1 .. 'babseezqzwxszhph' @ 839189 : 1]
 4093:2111908['babuvanukgkzeiyn' @ 912793 : 1 .. 'bdukrjhtrdbmqabo' @ 891071 : 1]
 4094:2116285['bdulpfqvudbraomp' @ 962101 : 1 .. 'bhkrhgcisgxlsbhu' @ 652288 : 1]
 4095:2116202['bhkricsgbfqlmqro' @ 971464 : 1 .. 'blcabgzpebkcyewj' @ 860948 : 1]
 4096:2111987['blcavpdtcnirxywg' @ 736071 : 1 .. 'boppeljwxlaxvcuk' @ 700794 : 1]
 4099:2111985['bopsjkfsxvwsxntg' @ 821203 : 1 .. 'bsizelryvsgunyor' @ 794552 : 1]
 4100:2116075['bsjbcmdwczovdkne' @ 670718 : 1 .. 'bvxmmpgmfkanzjwy' @ 983860 : 1]
 4101:1318883['bvxozsylkgilzxoy' @ 764579 : 1 .. 'byfssdrbywgwzemk' @ 824470 : 1]
...
--- level 3 ---
 2302:2116303['aaaaedomfzmckunq' @ 68453 : 1 .. 'acftfqgsejbnrooa' @ 105019 : 1]
 2304:2116275['acfuycrunfdbtnwf' @ 385636 : 1 .. 'aeitjoqmjyqonijv' @ 406785 : 1]
 2305:2116111['aeitmomvtohtrmxc' @ 326599 : 1 .. 'agmpdrsfiomtyoed' @ 332878 : 1]
 2307:2116162['agmpyfjydndrpwfv' @ 579213 : 1 .. 'aiqpprewufpwehbv' @ 217885 : 1]
 2309:2116227['aiqreckjfqqdyywn' @ 386880 : 1 .. 'akuwnaqfcfruwyuj' @ 60287 : 1]
 2310:2116114['akuwnjedlijvkzzc' @ 168449 : 1 .. 'amxoogjgysayudkk' @ 445482 : 1]
 2312:2116338['amxpjqqozxhwwebi' @ 532763 : 1 .. 'apczcpxyebndtipg' @ 413790 : 1]
 2313:2116136['apczftmdwgtqnkun' @ 182210 : 1 .. 'argphiqyodlxpekl' @ 413548 : 1]
 2315:2116301['argqhznzjjttaybf' @ 442321 : 1 .. 'atlgpojnnugmrdvo' @ 121827 : 1]
 2317:2116020['atlhhjtdbfhpcjej' @ 246234 : 1 .. 'avqflubxksiwlwej' @ 602243 : 1]
 2318:2116127['avqgdaltaazxjwxy' @ 318657 : 1 .. 'axvzgqwldofmtxxk' @ 170644 : 1]
 2320:2116193['axvzlblntufikupp' @ 466999 : 1 .. 'azzfqwhgsqyjzmmc' @ 283429 : 1]
 2321:2116178['azzfwhrzqphklobz' @ 168765 : 1 .. 'bcddotmmlssslypd' @ 186740 : 1]
 2323:2116161['bcddshulvefwfjcm' @ 231223 : 1 .. 'beilqtvrhuwfgttv' @ 523325 : 1]
 ...
--- level 4 ---
--- level 5 ---
--- level 6 ---

生成文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
// CURRENT文件内容
MANIFEST-000002
// LOG文件内容
2023/02/11-06:35:32.870487 140210496087872 Creating DB ./testdb since it was missing.
2023/02/11-06:35:32.875001 140210496087872 Delete type=3 #1
2023/02/11-06:35:32.898943 140210496083712 Level-0 table #5: started
2023/02/11-06:35:32.915567 140210496083712 Level-0 table #5: 4128690 bytes OK
2023/02/11-06:35:32.916400 140210496083712 Delete type=0 #3
2023/02/11-06:35:32.920415 140210496083712 Level-0 table #7: started
2023/02/11-06:35:32.934316 140210496083712 Level-0 table #7: 4128807 bytes OK
2023/02/11-06:35:32.935451 140210496083712 Delete type=0 #4
2023/02/11-06:35:32.941378 140210496083712 Level-0 table #9: started
2023/02/11-06:35:32.957089 140210496083712 Level-0 table #9: 4128769 bytes OK
2023/02/11-06:35:32.958093 140210496083712 Delete type=0 #6
2023/02/11-06:35:32.963023 140210496083712 Level-0 table #11: started
2023/02/11-06:35:32.978190 140210496083712 Level-0 table #11: 4128815 bytes OK
2023/02/11-06:35:32.979442 140210496083712 Delete type=0 #8
2023/02/11-06:35:32.985640 140210496083712 Level-0 table #13: started
2023/02/11-06:35:32.999842 140210496083712 Level-0 table #13: 4128777 bytes OK
2023/02/11-06:35:33.001029 140210496083712 Delete type=0 #10
2023/02/11-06:35:33.006239 140210496083712 Level-0 table #15: started
2023/02/11-06:35:33.020803 140210496083712 Level-0 table #15: 4128955 bytes OK
2023/02/11-06:35:33.022021 140210496083712 Delete type=0 #12
2023/02/11-06:35:33.022766 140210496083712 Compacting 4@0 + 1@1 files
2023/02/11-06:35:33.031179 140210496083712 Generated table #16@0: 1992 keys, 2113270 bytes
2023/02/11-06:35:33.031215 140210496083712 Level-0 table #18: started
2023/02/11-06:35:33.046107 140210496083712 Level-0 table #18: 4128778 bytes OK
2023/02/11-06:35:33.047097 140210496083712 Delete type=0 #14
2023/02/11-06:35:33.050682 140210496083712 Level-0 table #21: started
2023/02/11-06:35:33.064028 140210496083712 Level-0 table #21: 4128553 bytes OK
2023/02/11-06:35:33.065309 140210496083712 Delete type=0 #17
2023/02/11-06:35:33.071441 140210496083712 Generated table #19@0: 1992 keys, 2113325 bytes
2023/02/11-06:35:33.071563 140210496083712 Level-0 table #24: started
2023/02/11-06:35:33.088064 140210496083712 Level-0 table #24: 4129123 bytes OK
2023/02/11-06:35:33.089207 140210496083712 Delete type=0 #20
2023/02/11-06:35:33.092185 140210496083712 Level-0 table #26: started
2023/02/11-06:35:33.105934 140210496083712 Level-0 table #26: 4128935 bytes OK
2023/02/11-06:35:33.107231 140210496083712 Delete type=0 #22
2023/02/11-06:35:33.113728 140210496083712 Generated table #23@0: 1992 keys, 2113261 bytes
2023/02/11-06:35:33.121746 140210496083712 Generated table #27@0: 1992 keys, 2113321 bytes
2023/02/11-06:35:33.129264 140210496083712 Generated table #28@0: 1992 keys, 2113146 bytes
2023/02/11-06:35:33.139340 140210496083712 Generated table #29@0: 1992 keys, 2113242 bytes
2023/02/11-06:35:33.147956 140210496083712 Generated table #30@0: 1992 keys, 2113192 bytes
2023/02/11-06:35:33.155818 140210496083712 Generated table #31@0: 1992 keys, 2113304 bytes
2023/02/11-06:35:33.164075 140210496083712 Generated table #32@0: 1992 keys, 2113287 bytes
2023/02/11-06:35:33.170066 140210496083712 Generated table #33@0: 1532 keys, 1625207 bytes
2023/02/11-06:35:33.170096 140210496083712 Compacted 4@0 + 1@1 files => 20644555 bytes
2023/02/11-06:35:33.170781 140210496083712 compacted to: files[ 4 10 1 0 0 0 0 ]

leveldb的入门级使用
linux下leveldb的安装与编译
sst_dump工具可用于转存数据，查看分析具体的SST 文件。sst_dump可以对 SST 文件执行多种操作
Administration and Data Access Tool
