Tinyhttpd实战四:部署到云服务器

vim的基本使用

全选(高亮显示):按esc后,然后ggvG或者ggVG

全部复制:按esc后,然后ggyG

全部删除:按esc后,然后dG
解析:
gg:是让光标移到首行,在vim才有效,vi中无效
v : 是进入Visual(可视)模式
G :光标移到最后一行
选中内容以后就可以其他的操作了,比如:
d 删除选中内容
y 复制选中内容到0号寄存器
“+y 复制选中内容到+寄存器,也就是系统的剪贴板,供其他程序用

服务器上安装FTP服务端

1 安装vsftpd

1
sudo apt-get install vsftpd

2 修改配置文件
/etc/vsftpd.conf
这里把我的配置文件放上来

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
# Example config file /etc/vsftpd.conf
#
# The default compiled in settings are fairly paranoid. This sample file
# loosens things up a bit, to make the ftp daemon more usable.
# Please see vsftpd.conf.5 for all compiled in defaults.
#
# READ THIS: This example file is NOT an exhaustive list of vsftpd options.
# Please read the vsftpd.conf.5 manual page to get a full idea of vsftpd's
# capabilities.
#
#
# Run standalone? vsftpd can run either from an inetd or as a standalone
# daemon started from an initscript.
listen=YES
#
# This directive enables listening on IPv6 sockets. By default, listening
# on the IPv6 "any" address (::) will accept connections from both IPv6
# and IPv4 clients. It is not necessary to listen on *both* IPv4 and IPv6
# sockets. If you want that (perhaps because you want to listen on specific
# addresses) then you must run two copies of vsftpd with two configuration
# files.
listen_ipv6=NO
#
# Allow anonymous FTP? (Disabled by default).
#这个是设置是否允许匿名登录ftp服务器,不允许。
anonymous_enable=NO
#
# Uncomment this to allow local users to log in.
#是否允许本机用户登录
local_enable=YES
#
# Uncomment this to enable any form of FTP write command.
#允许上传文件到ftp服务器
write_enable=YES
#
# Default umask for local users is 077. You may wish to change this to 022,
# if your users expect that (022 is used by most other ftpd's)
#local_umask=022
#
# Uncomment this to allow the anonymous FTP user to upload files. This only
# has an effect if the above global write enable is activated. Also, you will
# obviously need to create a directory writable by the FTP user.
#anon_upload_enable=YES
#
# Uncomment this if you want the anonymous FTP user to be able to create
# new directories.
#anon_mkdir_write_enable=YES
#
# Activate directory messages - messages given to remote users when they
# go into a certain directory.
dirmessage_enable=YES
#
# If enabled, vsftpd will display directory listings with the time
# in your local time zone. The default is to display GMT. The
# times returned by the MDTM FTP command are also affected by this
# option.
use_localtime=YES
#
# Activate logging of uploads/downloads.
xferlog_enable=YES
#
# Make sure PORT transfer connections originate from port 20 (ftp-data).
connect_from_port_20=YES
#
# If you want, you can arrange for uploaded anonymous files to be owned by
# a different user. Note! Using "root" for uploaded files is not
# recommended!
#chown_uploads=YES
#chown_username=whoever
#
# You may override where the log file goes if you like. The default is shown
# below.
#xferlog_file=/var/log/vsftpd.log
#
# If you want, you can have your log file in standard ftpd xferlog format.
# Note that the default log file location is /var/log/xferlog in this case.
#xferlog_std_format=YES
#
# You may change the default value for timing out an idle session.
#idle_session_timeout=600
#
# You may change the default value for timing out a data connection.
#data_connection_timeout=120
#
# It is recommended that you define on your system a unique user which the
# ftp server can use as a totally isolated and unprivileged user.
#nopriv_user=ftpsecure
#
# Enable this and the server will recognise asynchronous ABOR requests. Not
# recommended for security (the code is non-trivial). Not enabling it,
# however, may confuse older FTP clients.
#async_abor_enable=YES
#
# By default the server will pretend to allow ASCII mode but in fact ignore
# the request. Turn on the below options to have the server actually do ASCII
# mangling on files when in ASCII mode.
# Beware that on some FTP servers, ASCII support allows a denial of service
# attack (DoS) via the command "SIZE /big/file" in ASCII mode. vsftpd
# predicted this attack and has always been safe, reporting the size of the
# raw file.
# ASCII mangling is a horrible feature of the protocol.
#ascii_upload_enable=YES
#ascii_download_enable=YES
#
# You may fully customise the login banner string:
#ftpd_banner=Welcome to blah FTP service.
#
# You may specify a file of disallowed anonymous e-mail addresses. Apparently
# useful for combatting certain DoS attacks.
#deny_email_enable=YES
# (default follows)
#banned_email_file=/etc/vsftpd.banned_emails
#
# You may restrict local users to their home directories. See the FAQ for
# the possible risks in this before using chroot_local_user or
# chroot_list_enable below.
#chroot_local_user=YES
#
# You may specify an explicit list of local users to chroot() to their home
# directory. If chroot_local_user is YES, then this list becomes a list of
# users to NOT chroot().
# (Warning! chroot'ing can be very dangerous. If using chroot, make sure that
# the user does not have write access to the top level directory within the
# chroot)
chroot_local_user=YES
chroot_list_enable=YES
# (default follows) 允许chroot_list文件中配置的用户登录此ftp服务器。
chroot_list_file=/etc/vsftpd.chroot_list

# You may activate the "-R" option to the builtin ls. This is disabled by
# default to avoid remote users being able to cause excessive I/O on large
# sites. However, some broken FTP clients such as "ncftp" and "mirror" assume
# the presence of the "-R" option, so there is a strong case for enabling it.
#ls_recurse_enable=YES
#
# Customization
#
# Some of vsftpd's settings don't fit the filesystem layout by
# default.
#
# This option should be the name of a directory which is empty. Also, the
# directory should not be writable by the ftp user. This directory is used
# as a secure chroot() jail at times vsftpd does not require filesystem
# access.
secure_chroot_dir=/var/run/vsftpd/empty
#
# This string is the name of the PAM service vsftpd will use.
pam_service_name=vsftpd
#
# This option specifies the location of the RSA certificate to use for SSL
# encrypted connections.
rsa_cert_file=/etc/ssl/certs/ssl-cert-snakeoil.pem
rsa_private_key_file=/etc/ssl/private/ssl-cert-snakeoil.key
ssl_enable=NO

#
# Uncomment this to indicate that vsftpd use a utf8 filesystem.
#utf8_filesystem=YES
#配置ftp服务器的上传下载文件所在的目录。
local_root=/home/ftpfile
#this directory is for ftp server to save download or upload data

/etc/vsftpd.chroot_list
记录运行登录用户
例如我的只有一行

1
root

3 创建/home/ftpfile文件夹
这个个好像可有可无,因为我没在这上传文件
有可能是我哪里配置错了,不过无所谓。。。

4 在阿里云配置安全组规则,开放21端口(如Tinyhttpd实战三所示)

而后就需要判断vsftpd是否安装成功
运气好的人这时候已经成功了
首先重启vsftpd服务

1
sudo service vsftpd restart

查看vsftpd状态

1
sudo service vsftpd status

如果一切正常(success),则在windows上安装xftp,开始传输文件
但大概率不会正常
如果出现**exit code **等字样,这先看端口占用

1
lsof -i:21

杀死进程

1
kill -s 9 pid

如果不是端口占有,就有很多种可能了
这里推荐再来一次试一试

1
2
3
sudo apt-get remove vsftpd
sudo apt-get upgrade --fix-missing
sudo apt-get install vsftpd

问题大多数与vsftpd.conf,listen 或者 listen_ipv6
这些我就不懂了,我反正就是重装

将Tinyhttpd文件移入服务器

我的虚拟机文件不知道为什么无法移动文件到宿主机,故采用折中的方法,共享文件夹,添加路径后,.在虚拟机中使用命令,

1
sudo vmware-config-tools.pl -d

在mnt/hgfs 路径下可以看到共享文件夹
这样便实现了文件的传输

服务器上对文件的配置

1 再次改变文件权限

1
2
3
4
5
6

cd htdocs

sudo chmod 600 index.html

sudo chmod 764 color.cgi check.cgi

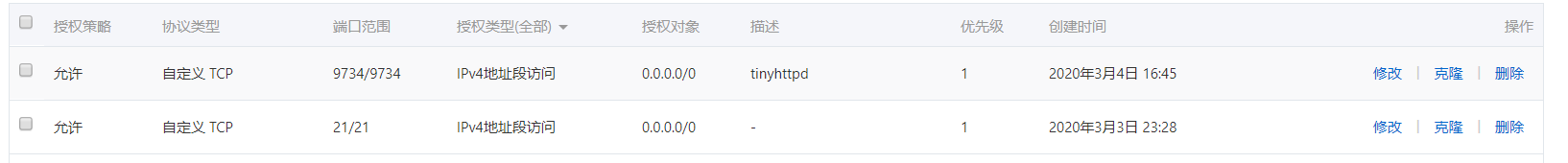

2 在阿里云上配置使用端口的安全组规则
这里用的是9734端口

3 找不到CGI模块问题
perl 缺少CGI模块,需要自己安装
如果是root用户

1
2
3
4
perl -MCPAN -e shell
cpan>install CGI
cpan>quit

测试是否安装成功

1
perl -e 'use CGI'

如果不是root用户,需要手动安装,bing搜索perl 模块安装即可
不再赘述

项目长期运行在服务器中

使服务端程序在后台运行,使用命令

1
nohup ./httpd > test.log>&1 &

而exit即可
欢迎访问我的项目首页
地址
