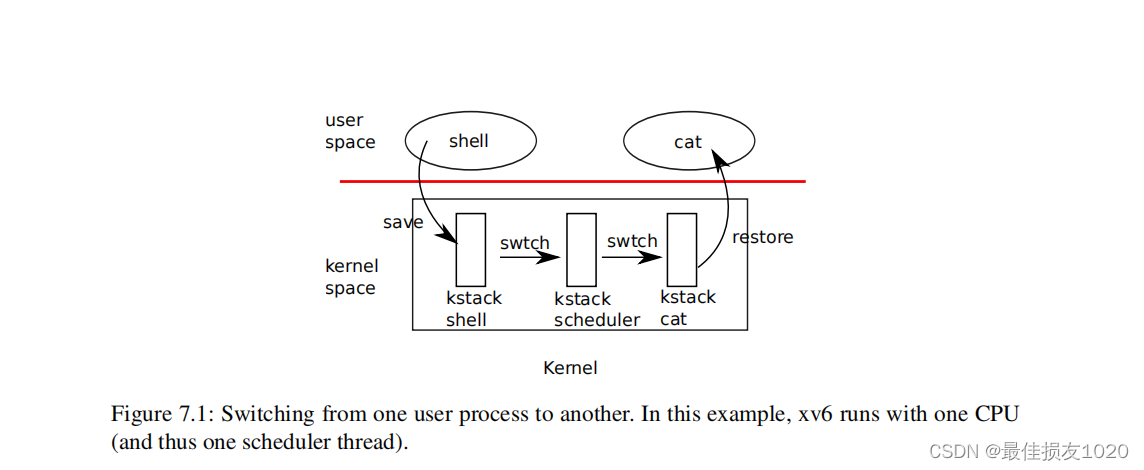

First, xv6’s sleep and wakeup mechanism switches when a process waits for device or pipe I/O to complete, or waits for a child to exit, or waits in the sleep system call. Second, xv6 periodically forces a switch to cope with processes that compute for long periods without sleeping.This multiplexing creates the illusion that each process has its own CPU, much as xv6 uses the memory allocator and hardware page tables to create the illusion that each process has its own memory.
// scheduler -> p2 acquire(&p->lock); if(p->state == RUNNABLE) { // Switch to chosen process. It is the process's job // to release its lock and then reacquire it // before jumping back to us. p->state = RUNNING; c->proc = p; swtch(&c->context, &p->context); // sched p2 mycpu()->intena = intena; // yield release(&p->lock);
// p->lock must be held when using these: enumprocstatestate;// Process state void *chan; // If non-zero, sleeping on chan int killed; // If non-zero, have been killed int xstate; // Exit status to be returned to parent's wait int pid; // Process ID
// wait_lock must be held when using this: structproc *parent;// Parent process

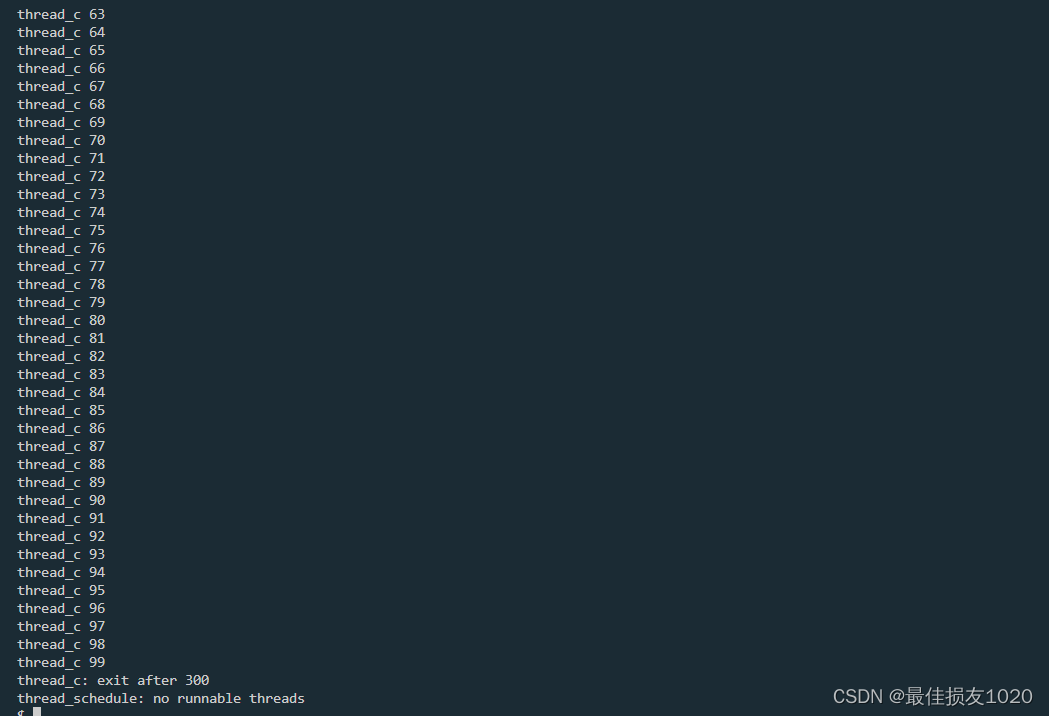

Your job is to come up with a plan to create threads and save/restore registers to switch between threads, and implement that plan. When you’re done, make grade should say that your solution passes the uthread test.
这部分只需要简单抄一下allocproc函数和swtch.S就可以了
1 2 3 4 5 6
// allocproc // Set up new context to start executing at forkret, // which returns to user space. memset(&p->context, 0, sizeof(p->context)); p->context.ra = (uint64)forkret; p->context.sp = p->kstack + PGSIZE;
// thread_schedule /* YOUR CODE HERE * Invoke thread_switch to switch from t to next_thread: * thread_switch(??, ??); */ thread_switch(&t->context, ¤t_thread->context);
To avoid this sequence of events, insert lock and unlock statements in put and get in notxv6/ph.c so that the number of keys missing is always 0 with two threads. The relevant pthread calls are: pthread_mutex_t lock; // declare a lock pthread_mutex_init(&lock, NULL); // initialize the lock pthread_mutex_lock(&lock); // acquire lock pthread_mutex_unlock(&lock); // release lock You’re done when make grade says that your code passes the ph_safe test, which requires zero missing keys with two threads. It’s OK at this point to fail the ph_fast test.

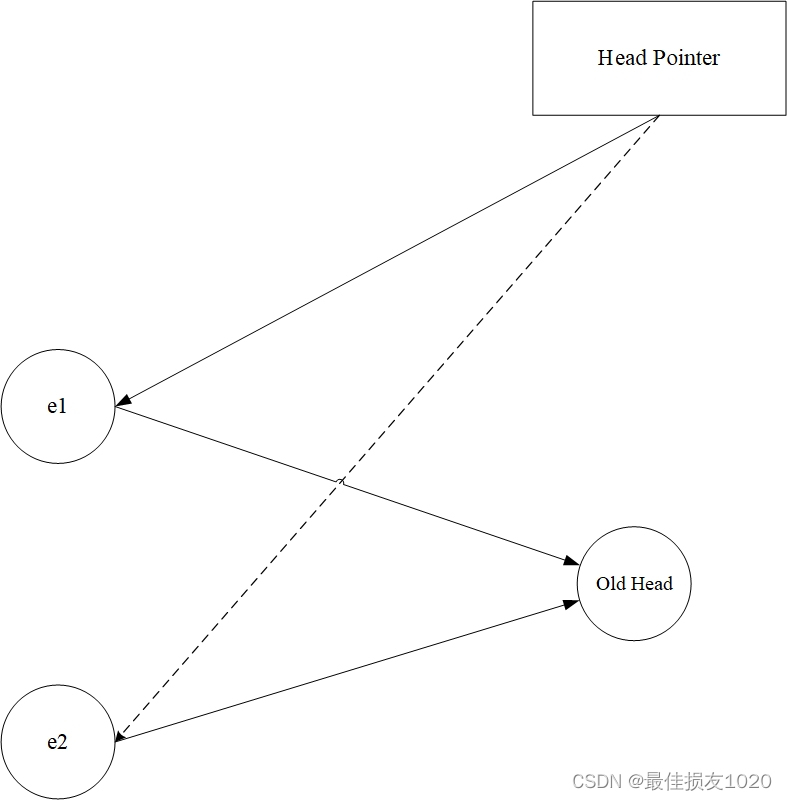

丢失键值的原因只需要看两行语句就可以了
1 2 3
// p : &table[i] n : table[i] e->next = n; *p = e;
structentry { int key; int value; structentry *next; }; structentry *table[NBUCKET]; pthread_mutex_t lock[NBUCKET]; // declare a lock int keys[NKEYS]; int nthread = 1;
staticvoidput(int key, int value) { int i = key % NBUCKET;
// is the key already present? structentry *e =0; pthread_mutex_lock(&lock[i]); for (e = table[i]; e != 0; e = e->next) { if (e->key == key) break; } if (e) { // update the existing key. e->value = value; } else { // the new is new. insert(key, value, &table[i], table[i]); } pthread_mutex_unlock(&lock[i]); }
Barrier
Your goal is to achieve the desired barrier behavior. In addition to the lock primitives that you have seen in the ph assignment, you will need the following new pthread primitives; look here and here for details. pthread_cond_wait(&cond, &mutex); // go to sleep on cond, releasing lock mutex, acquiring upon wake up pthread_cond_broadcast(&cond); // wake up every thread sleeping on cond Make sure your solution passes make grade’s barrier test.
